Stainless Steel Spray Ball Valves Manufacturer in India

Stainless steel spray ball valves are specialized sanitary cleaning devices designed to provide 360-degree coverage for automated cleaning-in-place (CIP) systems in tanks, vessels, reactors, and process equipment. These precision-engineered devices deliver high-impact spray patterns that ensure thorough cleaning of internal surfaces without manual intervention, making them indispensable in pharmaceutical, food processing, dairy, beverage, biotechnology, and chemical industries. Available as SS spray ball valves, sanitary spray ball valves, hygienic spray ball valves, and rotating spray ball valves, these cleaning solutions are manufactured to meet the highest standards of hygiene, efficiency, and durability.

Stainless Steel Spray Ball Valves Manufacturer, Hygienic Spray Ball Valves Manufacturer India, SS Spray Ball Valves, Sanitary Spray Ball Valves Supplier, Spray Ball Valves Suppliers In India, SS 304 Spray Ball Valves, SS 316 Spray Ball Valves, Spray Ball Valves Exporters, Spray Ball Valves Manufacturers, Spray Ball Valves Stockist, Spray Ball Valves Suppliers In Mumbai, CIP Spray Ball Valves, Tank Cleaning Spray Ball Valves, Rotating Spray Ball Valves, Static Spray Ball Valves, Fixed Spray Ball Valves.

One of the most effective variants is the rotating spray ball valve, which features a self-rotating mechanism powered by liquid flow, ensuring comprehensive coverage of large tank surfaces. The rotation is achieved through strategically positioned spray holes that create thrust, eliminating the need for external power sources. Static spray ball valves (also called fixed spray ball valves) provide stationary spray patterns ideal for smaller vessels or specific cleaning applications where rotation isn’t necessary. These spray ball valves feature multiple precisely drilled holes arranged in specific patterns to maximize cleaning efficiency while minimizing water and chemical consumption.

The CIP spray ball valve is specifically engineered for integration with automated cleaning-in-place systems, incorporating threaded or tri-clamp connections for easy installation and removal. These devices ensure repeatable cleaning cycles that meet regulatory validation requirements. The tank cleaning spray ball valve comes in various configurations including weld-on permanent installations, threaded removable types, and tri-clamp sanitary connections for applications requiring frequent inspection or replacement. Additionally, stainless steel spray ball valves manufactured from premium grades like SS 304 spray ball valves and SS 316 spray ball valves offer exceptional corrosion resistance against cleaning chemicals, acids, and alkaline solutions commonly used in CIP processes.

As a leading stainless steel spray ball valves manufacturer in India and trusted hygienic spray ball valves manufacturer India, we specialize in delivering high-quality cleaning devices that conform to international standards including 3-A Sanitary Standards, FDA regulations, EHEDG guidelines, and ASME BPE requirements. Our comprehensive product range includes various spray ball valve configurations designed for specific tank sizes, cleaning requirements, and industry applications. Whether you need sanitary spray ball valves for pharmaceutical reactors or hygienic spray ball valves for food processing tanks, our manufacturing facility is equipped with advanced CNC drilling, precision welding, and electropolishing capabilities to meet your exact specifications.

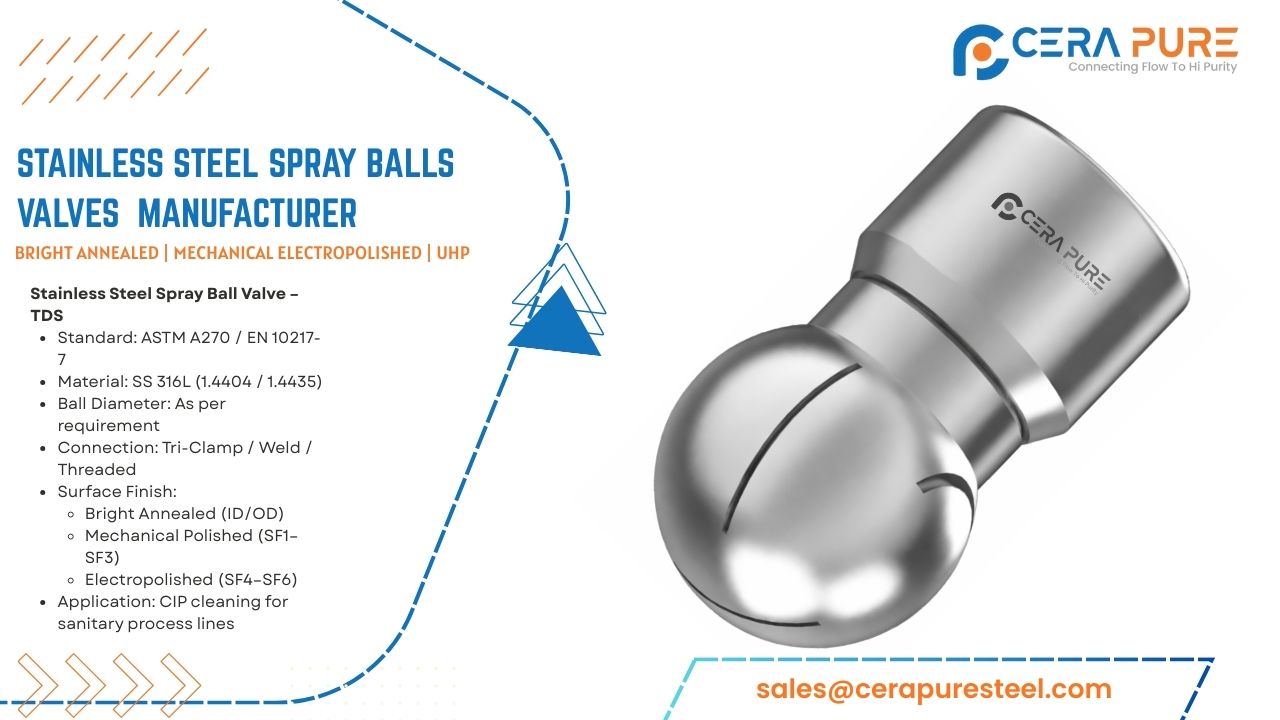

Stainless Steel Spray Balls
Sizes

1/4″ NB to 24″ NB Seamless 1/4″ NB to 48″ NB Welded

Thickness

SCH 5 to SCH XXS

Specifications

ASTM A312, A249, A269, A270

Spray Ball Valves Suppliers In India, Spray Ball Valves Stockist In Mumbai, Spray Ball Valves Stockist In India, Spray Ball Valves Exporters In Mumbai, Spray Ball Valves Exporters In India, Spray Ball Valves Manufacturers In Mumbai, Spray Ball Valves Manufacturers In India, Stainless Steel Spray Ball Valves Suppliers, Sanitary Spray Ball Valves Exporters, Hygienic Spray Ball Valves Manufacturers, CIP Spray Ball Valves Stockist, Tank Cleaning Spray Ball Valves Suppliers, Rotating Spray Ball Valves Manufacturers.

As prominent spray ball valves manufacturers in Mumbai and across India, we understand the critical role these cleaning devices play in maintaining product quality, regulatory compliance, and operational efficiency. Our position as reliable spray ball valves suppliers in India enables us to serve diverse industries including pharmaceutical manufacturing, biotechnology, dairy processing, beverage production, food processing, brewing, winemaking, cosmetics manufacturing, and chemical processing. We maintain substantial inventory as spray ball valves stockist in Mumbai to ensure immediate availability of standard configurations while also offering custom design and fabrication for unique vessel geometries and cleaning challenges.

Our role as spray ball valves exporters in India extends our reach to international markets across the Middle East, Southeast Asia, Africa, Europe, and North America. As dedicated stainless steel spray ball valves suppliers and sanitary spray ball valves exporters, we ensure timely delivery and comprehensive technical support including spray pattern analysis, flow rate calculations, and CIP system integration guidance. The SS 304 spray ball valves are ideal for general food processing and dairy applications offering excellent corrosion resistance at economical prices, while SS 316 spray ball valves provide superior resistance to acids, chlorides, and aggressive cleaning chemicals due to their molybdenum content, making them perfect for pharmaceutical, biotech, and chemical applications where cleaning validation is critical.

Global Export Network

As leading Spray Ball Valves Exporters and Sanitary Spray Ball Valves Exporters, we export worldwide to:

North America: USA, Canada, Mexico

South America: Brazil, Argentina, Chile, Peru, Colombia

Europe: Germany, France, Italy, Spain, Netherlands, Belgium, Poland, Austria, Switzerland, United Kingdom

Middle East: Saudi Arabia, UAE, Qatar, Oman, Kuwait, Bahrain

Asia: Singapore, Malaysia, Indonesia, Thailand, Vietnam, Philippines, Japan, South Korea, Sri Lanka, Bangladesh, Nepal

Africa: South Africa, Egypt, Nigeria, Kenya, Tanzania, Morocco

Oceania: Australia, New Zealand

Note: – All shipments are supplied with export-grade packaging and complete documentation.

Serving All Major Cities in India

As premier Spray Ball Valves Manufacturers In India and Stainless Steel Spray Ball Valves Suppliers, we serve:
Mumbai, Navi Mumbai, Thane, Palghar, Pune, Nashik, Aurangabad, Ahmedabad, Vadodara, Surat, Vapi, Ankleshwar, Bharuch, Dahej, Jamnagar, Rajkot, Chennai, Bangalore, Coimbatore, Hyderabad, Visakhapatnam, Vijayawada, Kochi, Palakkad, Thiruvananthapuram, New Delhi, Noida, Gurugram, Faridabad, Jaipur, Neemrana, Bhiwadi, Ludhiana, Jalandhar, Kolkata, Howrah, Durgapur, Haldia, Raipur, Bhilai, Nagpur, Indore, Bhopal.

Types of Stainless Steel Spray Ball Valves We Offer

SS 316Ti Rotating Spray Ball Valve for Fermentation Tanks
SS 317L Static Spray Ball Valve for Small Vessels
ASTM A270 Stainless Steel CIP Spray Ball Valve
ASME BPE SS 316 Sanitary Spray Ball Valve
SS 316L Hygienic Spray Ball Valve Electropolished
SS 321 Threaded Spray Ball Valve NPT Connection
347H Stainless Steel Tri-Clamp Spray Ball Valve Supplier
Stainless Steel 904L Chemical Resistant Spray Ball Valve
Stainless Steel Fixed Spray Ball Valve for IBC Totes
ISO 2852 SS Weld-on Spray Ball Valve Exporter
SS 304 Rotating Tank Cleaning Ball
SS 304L Static Spray Ball Valve Stockist
SS 304 Single Piece Spray Ball Valve
3-A Sanitary SS Multi-Hole Spray Ball Valve Exporter
SS 304L Dynamic Spray Ball Valve Stockist
317L Stainless Steel Retractable Spray Ball Valve
ASTM A270 Stainless Steel High Pressure Spray Ball Valve
Stainless Steel 316Ti Low Flow Spray Ball Valve
Stainless Steel 904L Heavy Duty Spray Ball Valve
Stainless Steel Self-Cleaning Spray Ball Valve
347H Stainless Steel Pharmaceutical Grade Spray Ball Valve Supplier
SS 321 Brewery Spray Ball Valve for Fermenters
SS 316L Dairy Spray Ball Valve for Milk Tanks
ASME BPE Biotech Spray Ball Valve for Bioreactors
SS 304 Food Grade Spray Ball Valve FDA Approved
SS 316L Beverage Industry Spray Ball Valve
Stainless Steel Wine Tank Spray Ball Valve
SS 304L Cosmetic Tank Cleaning Ball
SS 316 Chemical Process Spray Ball Valve
Stainless Steel Storage Tank Spray Ball Valve
SS 316L Silo Cleaning Spray Ball Valve
SS 304 Portable Tank Spray Ball Valve Assembly

Stainless Steel Spray Ball Valves Specifications

Parameter

Details

Material Grades

SS 304, SS 304L, SS 316, SS 316L, SS 316Ti

Diameter Range

25mm to 300mm (1″ to 12″)

Connection Types

Threaded (NPT/BSPT), Tri-Clamp, Weld-on, Flanged

Hole Diameter

1.5mm to 6mm (customizable)

Number of Holes

4 to 120+ (based on size and pattern)

Flow Rate Range

5 LPM to 500 LPM (size dependent)

Pressure Rating

2 to 10 Bar (30 to 150 PSI)

Temperature Range

-10°C to 150°C (CIP/SIP compatible)

Surface Finish

Electropolished, Ra ≤ 0.8 μm

Standards

3-A Sanitary, ASME BPE, EHEDG, FDA 21 CFR

Spray Ball Valve Types & Applications

Spray Ball Valve Type

Mechanism

Coverage Pattern

Ideal Applications

Rotating Spray Ball Valve

Self-rotating (flow-driven)

360° dynamic coverage

Large tanks (>1000L), fermenters, reactors

Static Spray Ball Valve

Fixed position

Radial 360° pattern

Small to medium tanks (<1000L), totes, IBCs

Dynamic Spray Ball Valve

Mechanical rotation

Controlled sweep pattern

Precise cleaning, large vessels, specialized equipment

Single Piece Spray Ball Valve

One-piece construction

Fixed hole pattern

Permanent installations, high-pressure cleaning

Retractable Spray Ball Valve

Extendable mechanism

Variable reach

Deep tanks, silos, difficult-to-reach areas

Multi-Stage Spray Ball Valve

Multiple spray zones

Layered coverage

Complex vessel geometries, tall tanks



Spray Ball Valve Size & Coverage Specifications

Ball Diameter

Recommended Tank Diameter

Typical Hole Count

Flow Rate

Spray Radius

25mm (1″)

Up to 500mm

6-12 holes

10-20 LPM

0.5-0.8m

50mm (2″)

500-1000mm

12-24 holes

30-60 LPM

0.8-1.2m

75mm (3″)

1000-1500mm

24-48 holes

60-120 LPM

1.2-1.8m

100mm (4″)

1500-2500mm

48-72 holes

120-200 LPM

1.8-2.5m

150mm (6″)

2500-4000mm

72-108 holes

200-350 LPM

2.5-3.5m

200mm (8″)

4000-6000mm

108-144 holes

350-500 LPM

3.5-4.5m



Industry Compliance & Standards

Standard

Application Area

Compliance Requirements

3-A Sanitary Standards

Dairy & Food Processing

Material certification, smooth surfaces, drainability

FDA 21 CFR Part 177

Food Contact Materials

Material compliance, no product contamination

ASME BPE

Bioprocessing Equipment

Surface finish SF4, documentation, validation support

EHEDG Type EL Class I

European Hygienic Equipment

Cleanability validation, no dead legs

cGMP Compliance

Pharmaceutical Manufacturing

Validation protocols, IQ/OQ documentation

ATEX Certification

Explosive Atmospheres

Static-free operation, grounding provisions



Equivalent Grades of Stainless Steel Spray Ball Valves

STANDARD

WERKSTOFF NR.

UNS

JIS

BS

EN

SS 304

1.4301

S30400

SUS 304

304S31

X5CrNi18-10

SS 304L

1.4307

S30403

SUS 304L

304S11

X2CrNi19-11

SS 316

1.4401

S31600

SUS 316

316S31

X5CrNiMo17-12-2

SS 316L

1.4404

S31603

SUS 316L

316S11

X2CrNiMo17-12-2

Being a premier hygienic spray ball valves manufacturer, we ensure every spray ball valve undergoes rigorous quality testing including dimensional verification, hole size inspection, spray pattern testing, pressure testing, and surface finish verification. Our CIP spray ball valves stockist inventory includes a wide range of standard configurations with both electropolished and mechanically polished finishes. As experienced tank cleaning spray ball valves suppliers, we provide complete technical support including spray ball valve selection calculators, flow rate recommendations, and CIP system design assistance to ensure optimal cleaning performance for your specific application.

Our rotating spray ball valves manufacturers division specializes in self-rotating designs that provide superior coverage for large fermentation tanks, storage silos, and process vessels. The rotation mechanism is engineered for reliability and longevity, with precision-drilled holes positioned to create balanced thrust that ensures consistent rotation speeds across varying flow rates. We also manufacture static spray ball valves with customized hole patterns optimized for specific tank geometries, ensuring complete surface wetting and effective removal of residues, proteins, and biofilms.

conclusion

stainless steel spray ball valves are essential components for automated tank cleaning and CIP systems in modern sanitary processing facilities. As your trusted stainless steel spray ball valves manufacturer in India, we offer a comprehensive range including rotating spray ball valves, static spray ball valves, CIP spray ball valves, and custom-designed cleaning solutions to meet diverse industry requirements. With commitment to quality, precision manufacturing, and customer satisfaction, we have established ourselves as preferred spray ball valves suppliers in Mumbai and throughout India. Our extensive experience as spray ball valves exporters ensures that you receive world-class cleaning devices backed by exceptional technical support, spray pattern validation data, complete material traceability documentation, and reliable after-sales service.

Frequently Asked Questions (FAQs)

01.
What is the difference between rotating and static spray ball valves?
Rotating spray ball valves feature a self-rotating mechanism powered by liquid flow through strategically positioned holes that create thrust, providing dynamic 360-degree coverage ideal for large tanks (1000L+), fermenters, reactors, and storage silos. The rotation ensures every internal surface receives multiple wetting cycles during cleaning. Static (fixed) spray ball valves have a stationary design with holes arranged in specific patterns to provide radial spray coverage without rotation, making them suitable for small to medium tanks (1.5 or volumes exceeding 1000 liters, and static spray ball valves for smaller vessels or where flow capacity is limited.
02.
How do I select the correct spray ball valve size for my tank?
Spray ball selection depends on several factors: tank diameter, tank height, cleaning chemical used, soil load, and available flow rate/pressure. As a general guideline, the spray ball valve diameter should be 1/10th to 1/15th of the tank diameter. For example, a 1500mm diameter tank typically requires a 75-100mm spray ball valve. The spray ball valve must be positioned to ensure complete surface coverage—typically 150-300mm below the top tangent line for cylindrical tanks. Flow rate requirements vary by size: a 50mm spray ball valve needs 30-60 LPM, while a 150mm ball requires 200-350 LPM at 2-4 bar pressure. Our technical team provides free spray ball valve selection services using tank dimensions, CIP parameters, and cleaning validation requirements. We can also conduct computational fluid dynamics (CFD) analysis for complex vessel geometries to ensure optimal coverage before manufacturing.
03.
Are stainless steel spray ball valves compatible with CIP and SIP systems?
Yes, properly designed stainless steel spray ball valves are fully compatible with both CIP (Clean-in-Place) and SIP (Steam-in-Place) systems. Our spray ball valves are manufactured from SS 304, 316, or 316L grades that withstand repeated thermal cycling between ambient temperature and 150°C without degradation. The electropolished surface finish (Ra ≤ 0.8 μm) ensures no residue accumulation on the spray ball valve itself. For SIP compatibility, ensure spray ball valve connections have proper drainage to prevent steam condensate accumulation. Threaded connections should use high-temperature gaskets or PTFE tape rated for 150°C+. Tri-clamp connections with silicone or Viton gaskets are ideal for frequent SIP cycles. We provide spray ball valves that meet ASME BPE and 3-A Sanitary Standards with complete validation documentation including material certificates, surface finish reports, and spray pattern test data to support your cleaning validation protocols.
04.
What maintenance do spray ball valves require and how long do they last?
Stainless steel spray ball valves require minimal maintenance but benefit from periodic inspection to ensure optimal performance. Every 3-6 months (or per your CIP validation schedule), remove the spray ball valve and visually inspect for: (1) hole blockage from mineral deposits or product residue, (2) surface pitting or corrosion, (3) mechanical damage to holes or sphere surface, (4) proper rotation (for rotating types). Blocked holes can be cleared using appropriate brushes, acid cleaners, or ultrasonic cleaning. For rotating spray ball valves, check for smooth rotation without binding—reduced rotation speed indicates hole blockage affecting thrust balance. With proper material selection (SS 316/316L for acidic/chloride environments) and appropriate CIP chemical concentrations, spray ball valves typically last 5-10+ years in pharmaceutical and food processing applications. Factors reducing lifespan include: excessive chloride exposure with SS 304, abrasive cleaning methods, mechanical impact during tank entry, and improper chemical selection. We offer inspection and refurbishment services for damaged spray ball valves, including hole re-drilling and re-polishing.
05.
Can you provide custom spray ball valve designs for unique tank configurations?
Yes, custom spray ball valve design and fabrication is one of our core specialties. We manufacture custom spray ball valves for unique applications including: non-standard diameters (from 25mm to 300mm+), special hole patterns optimized for specific tank geometries, mixed hole sizes for multi-stage cleaning, asymmetric designs for horizontal tanks, multiple spray ball valves on single manifolds for large vessels, special materials (duplex steel, Hastelloy, titanium), extended stems for deep tanks, and integrated temperature/pressure sensors. Our engineering team uses advanced CFD simulation to model spray patterns and ensure complete coverage before manufacturing. Custom projects typically require: (1) tank drawings with dimensions, (2) CIP system specifications (flow rate, pressure, chemical type), (3) cleaning objectives and soil types, (4) validation requirements. Lead time for custom spray ball valves is 3-5 weeks including design, simulation, approval, and fabrication. Minimum order quantities for custom designs typically start at 5 pieces to justify engineering and tooling costs, though we can accommodate single-piece prototypes at premium pricing.
